Accurate capacitor substitution box

C_decade

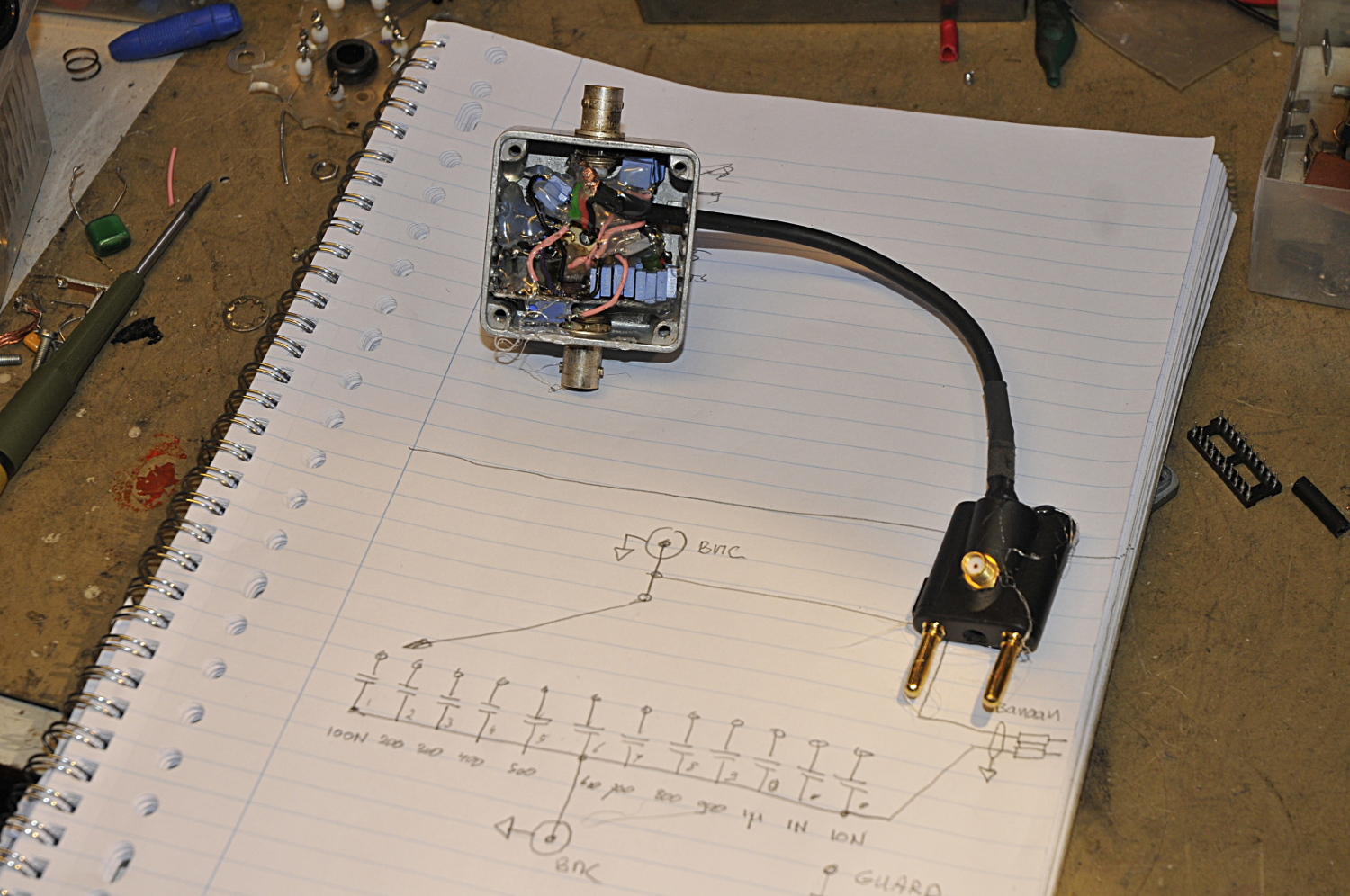

The inside and “schematic”

I made this at first as a substitution box. Handy while testing prototypes or things like filters. But while measuring the capacitors I decided to make a decade with 1nF, 10nF and 100 upto 1000nF in 100 nF steps. I used foil caps with a low dissipation factor. Most of them are stacked 100 nF.

The cable is shielded per wire and the shield is connected to a guard connection. This way the cabled adds less as 1 pF. The BNC’s are there for use with a vna or bridgemeasurements

After building I measured the values on my GR-1620, values in nF, the second number is DF:

1) 99,819    0,003716
2) 199,512  0,003880
3) 299,970  0,004122
4) 400,753  0,004003
5) 501,145  0,004294
6) 601,824  0,000810
7) 700,193  0,004263
8) 803,256  0,004272
9) 900,631  0,004268
0) 998,734  0,004026
-) 1,01132   0,005613
-) 10,0154  0,005560
With this data it is also a handy tool to check a LCR meter.

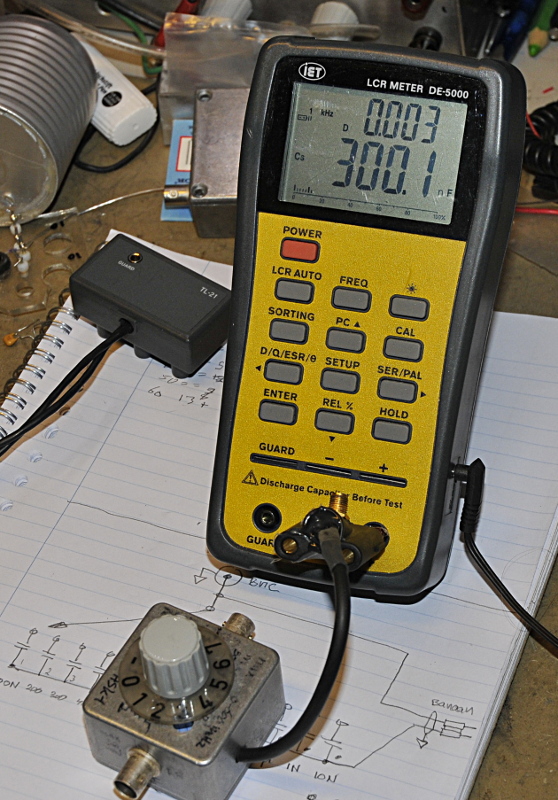

The first test.

The first test.
