Part off my collection of Tek probes:

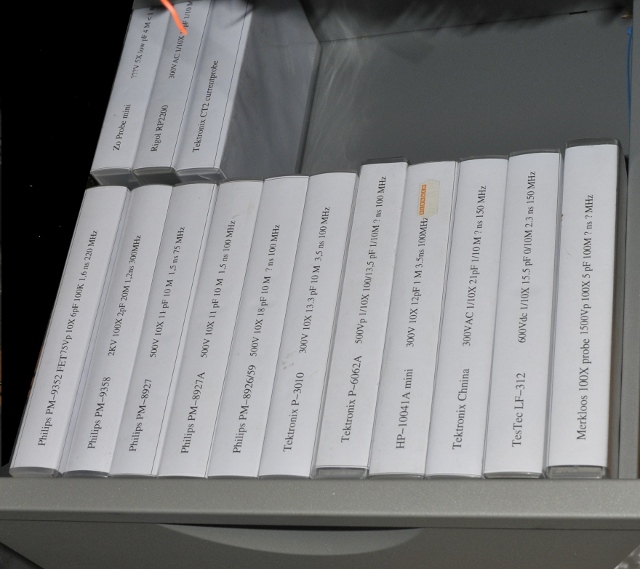

Probe filing
I was looking for a way to store my probes instead of a bunch of hanging probes with the leads messed up.
Some special probes:

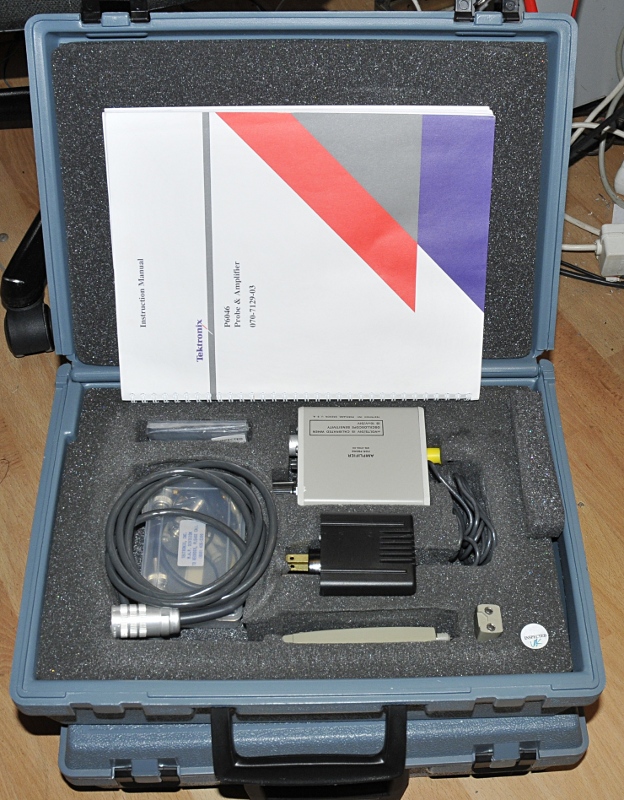

P6046 diff probe set
An active dual-input, differential probe. 1mV-200mV/div from the separate probe amp. Through the 10X attenuator head higher voltages can be measured. Common mode operation range is 5V and 25V max, and x10 with the attenuator. The bandwidth is 100MHz

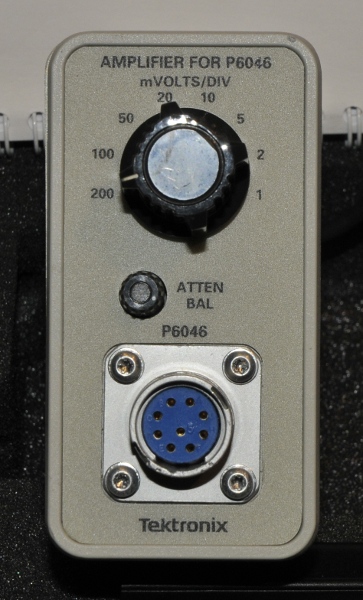

probe amp

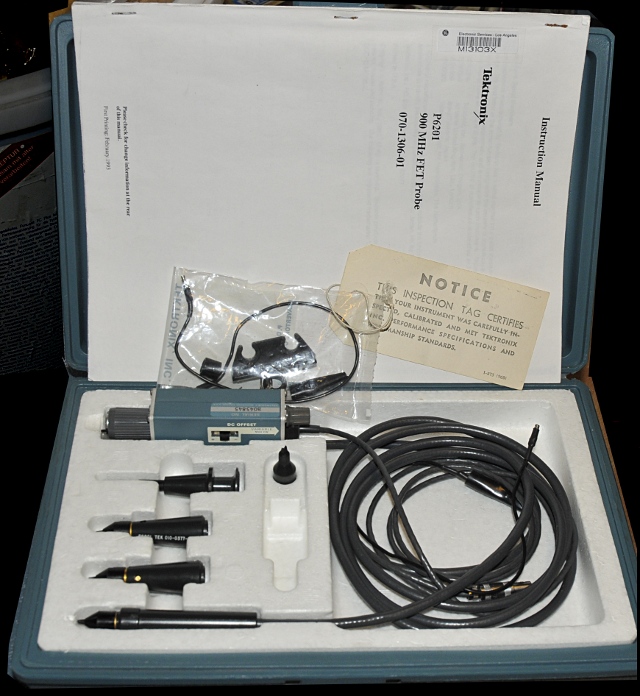

P6201 900MHz active FET probe
DC to 900 MHz FET probe inclusive powersupply. Tr= 390ps, 1x. 10x, 100x attenuation, input impedance 100K/3pF (probe) 1M/1.5pF attenuation heads.
1.2Vpp in 1X range upto 120Vpp in 100X . Max +/-200V, Delay 11.2ns

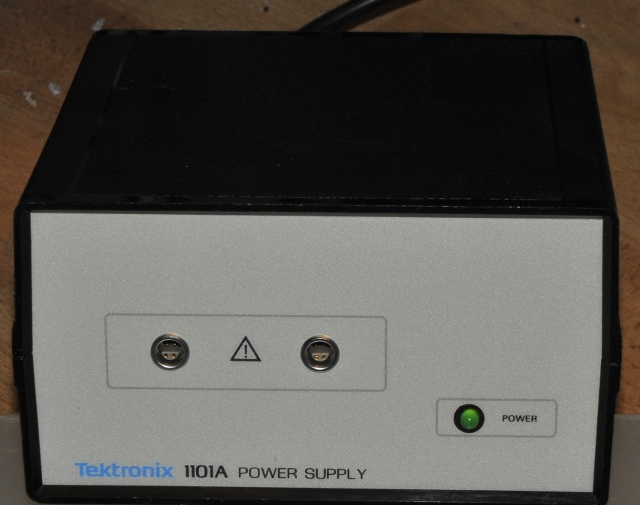

1101A powersupply

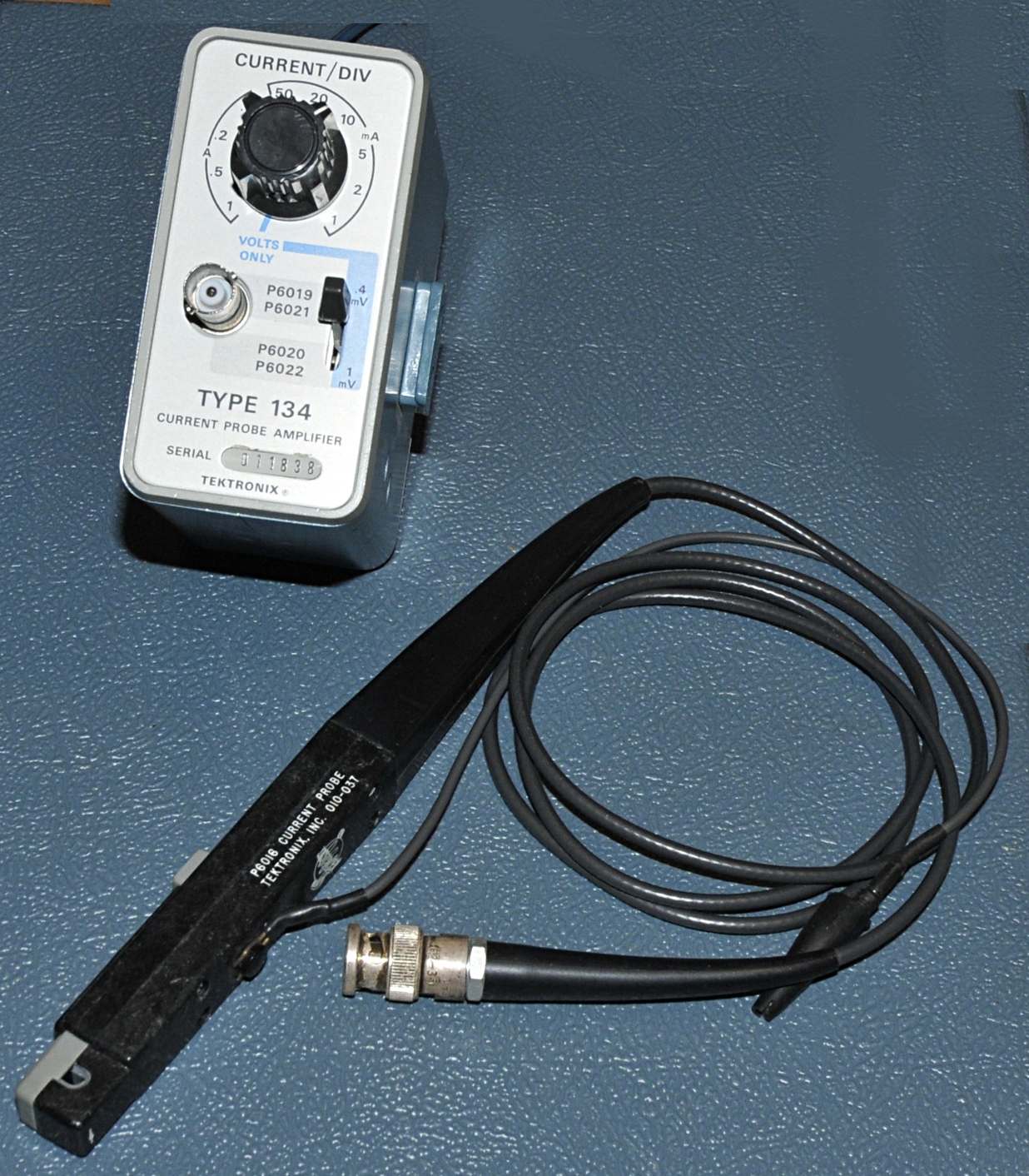

P6016 and 134 amp

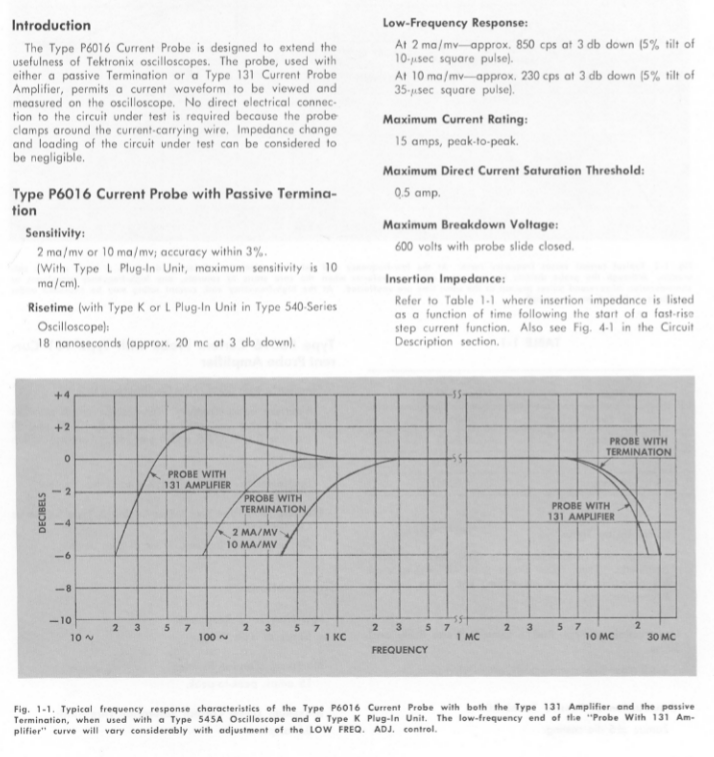

specs P6016

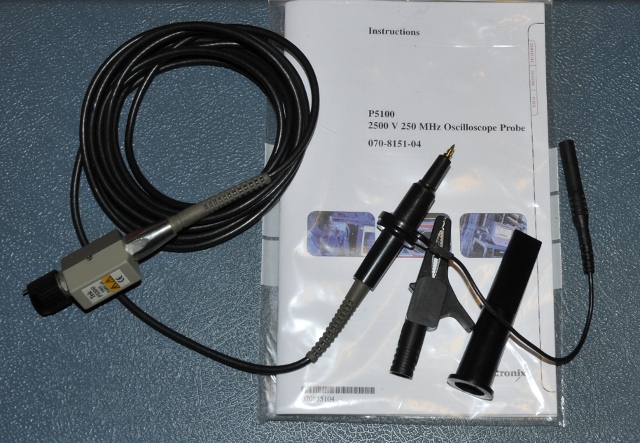

P5100 2500V 250MHz 100x probe

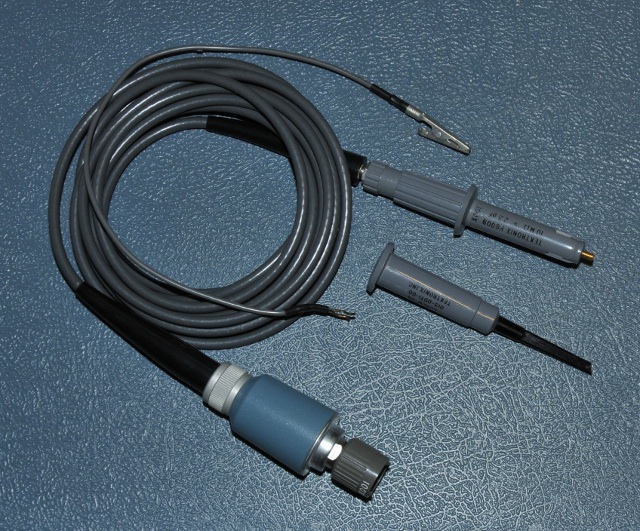

P6009 100X 10M 120MHz 2.5pF 1500V

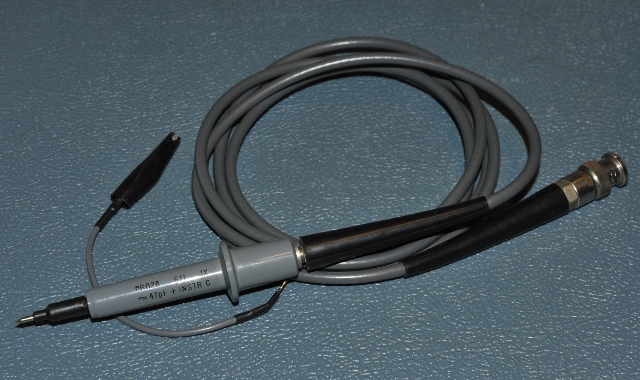

P6028 33MHz 1X probe for the 5XX series

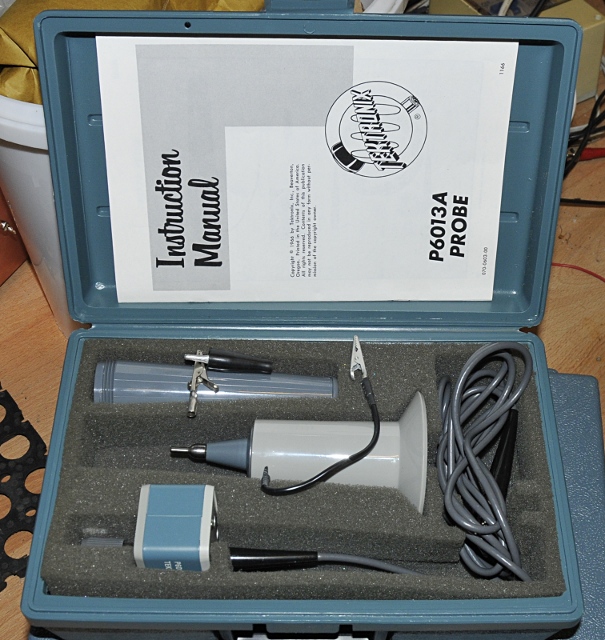

P6013A HV probe 1000x 100M, 3pF, 80MHz, 12KV (under 100KHz and debrading to 100V at 80MHz)

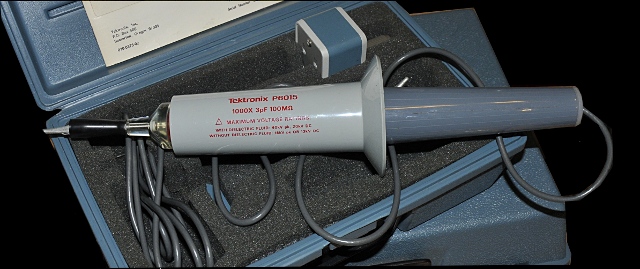

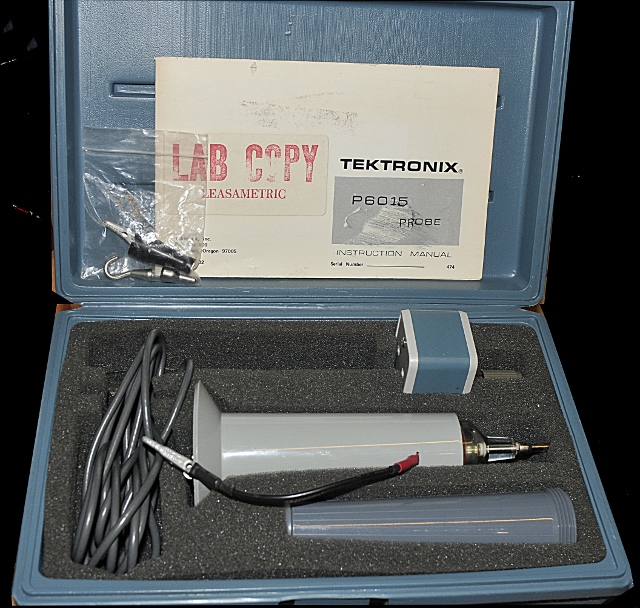

P6015 1000X probe, 100M, 3pF, 40KV DC or rms, 75MHz under 100KHz, 5KV at 10MHz
mounted

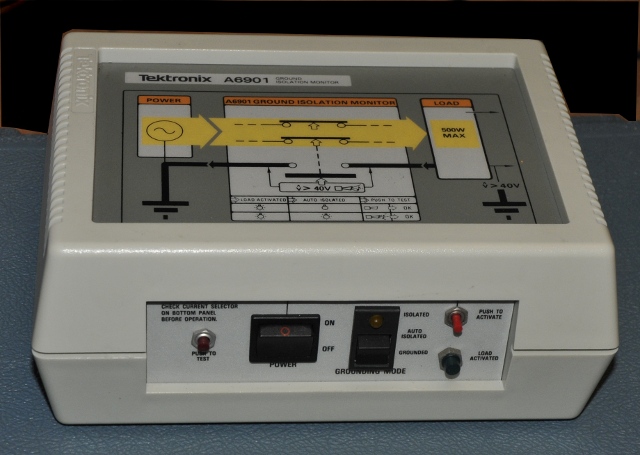

A6901 ground isolation monitor
