Williams Dipsy Doodle Flipperkast restauration

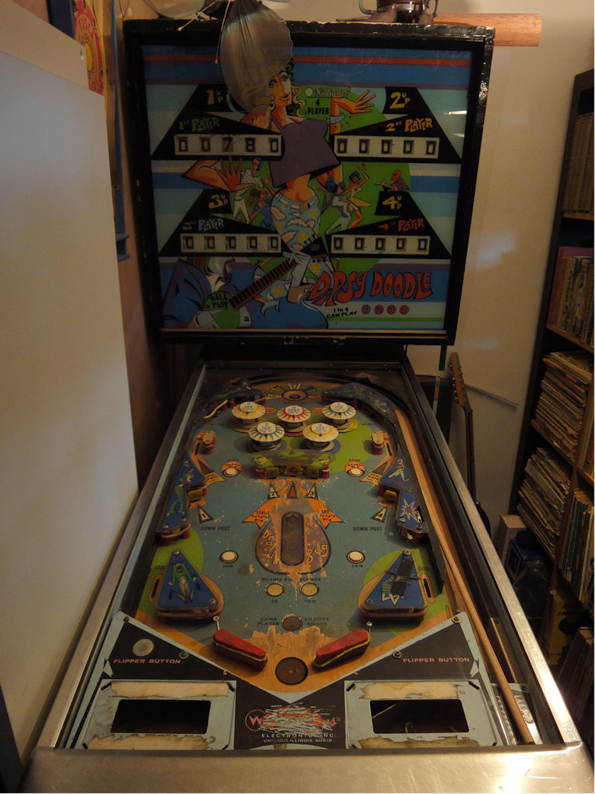

Before restauration at the former owers location

In rather bad shape, it was played until it stopped. Some burned coils, stuck rotors and very dirty. The playfield has no glass. The  doodle bug is missing, instead a motor and blinking light. All rubbers are worn, flippers worn. One popper mechanism missing. And a lot of things more. But it was for Free so I do not complain.

Stripped playfield
Stripped playfield
deurbinnen
Coin mechanism
units2klaar
Cleaned units
unitsklaar
Other side units after cleaning
scoremotorklaar
Cleaned score unit
onderplayfield
Underside playfield
binnenboard
bottom board
scoremotorburn
Burned score motor
coilunitvoor
Dirty stuck coil unit
balcountervoor
Stuck dirty ball count unit
scoremotorvoor
Dirty scoremotor
lockburned
Lock relais
relaisvoor
Some relais before cleaning
zekeringenvoor
Fuses before cleaning

And then after all contacts are cleaned, adjusted, flipper rebuild, new solenoids and a lot more it is allmost ready but we can play. The playfield needs some glass and the scorecard/instruction cards mounted (allready made). It is not set for free play but also misses the coin testers so I placed a microswitch under the money return bar. This will actuate one of the coin switches.

Allmost ready, still missing the playfield glass
Allmost ready, still missing the playfield glass



My son, the pinball wizzard
My son, the pinball wizzard
