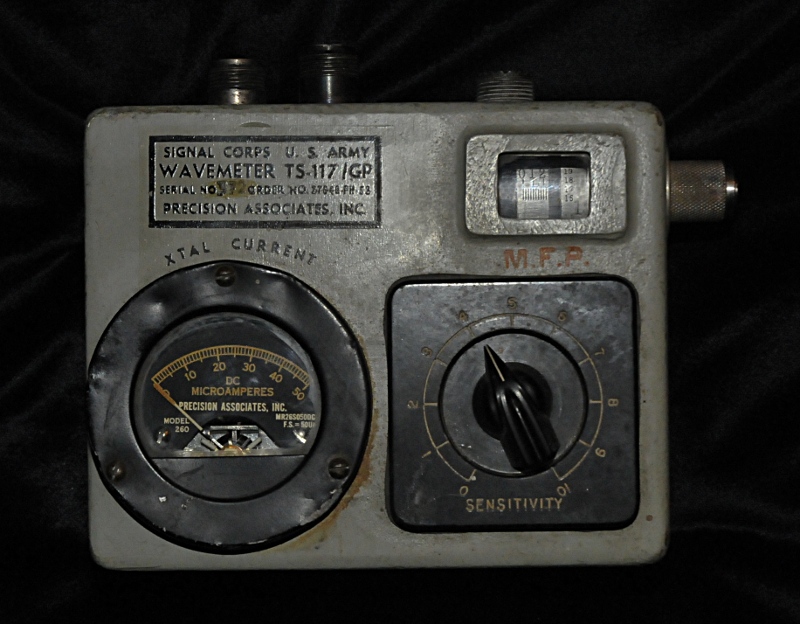

Wavemeter TS-117/GP

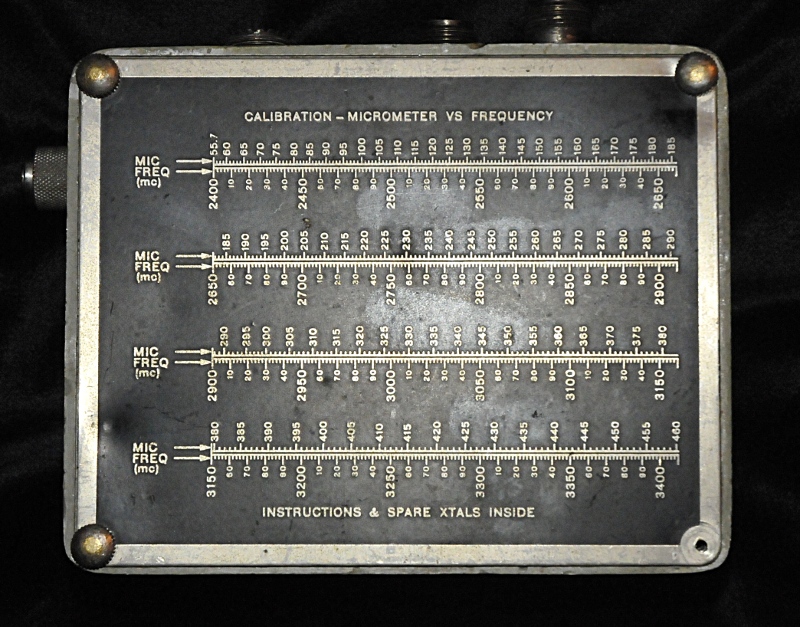

Conversion from mm to MHz

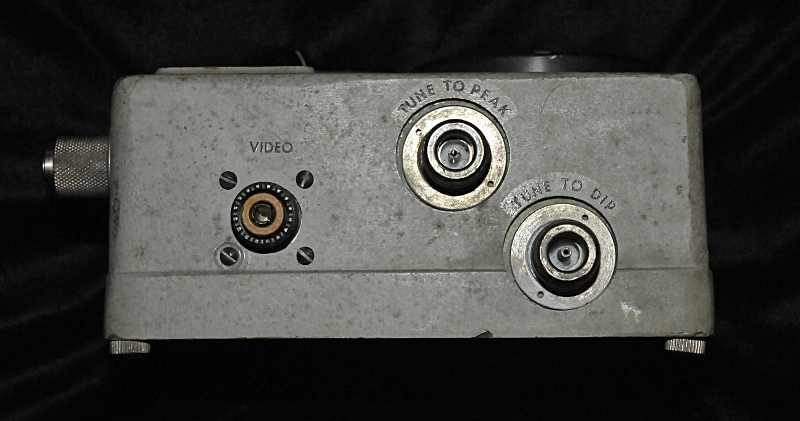

Top connectors

I’m looking for more information about this instrument. Where to connect the dipole and how does it look among other.

Freq Range: 2,400 to 3,400 mc
Type of Reception: CW, pulse
Pwr, Range: 100 to 1,000 uw
Sensitivity: 500 uw
Impedance: 50 ohms (input); 90 ohms (output)
Q: 1,000 to 2,000
Temp Range: 40°C to +48.8°C
Accuracy: ±.5 mc (at 3,256 mc); ±.1% (at all other freq)
Major Units: TS117/GP 4 3/4″ X 5 7/8″ X 2 3/4″; 3.36 lbs
(1) 1N21B
