HP-1121A Active AC probe for analysers

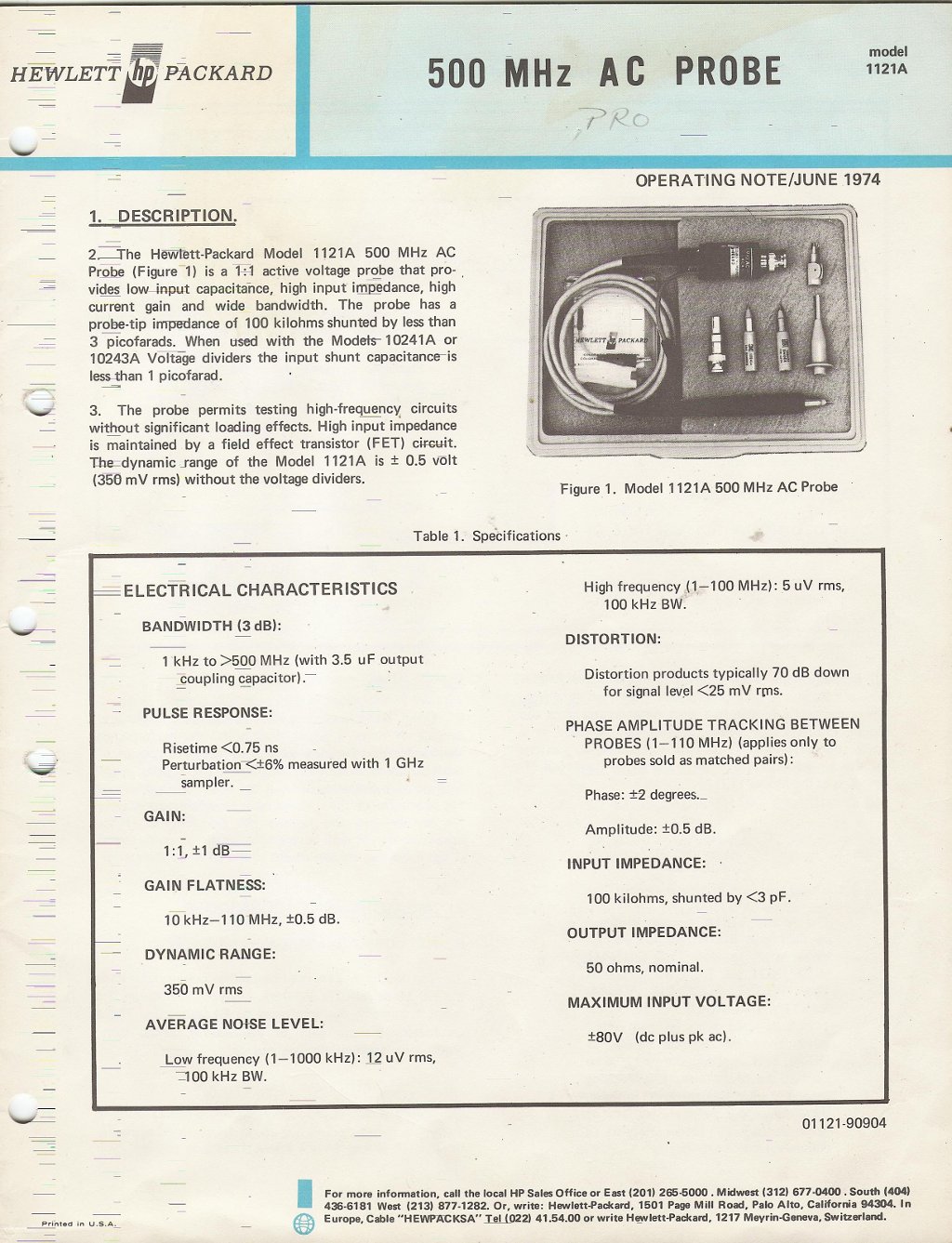

Front of manual

Around the time the HP-8407 VNA was introduced they presented this active probe.  But it was also usable for spectrum analysers and scopes.

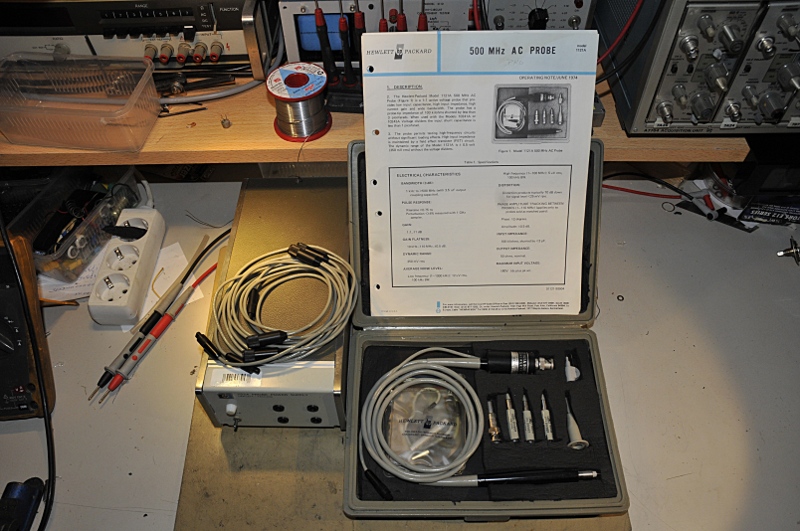

The complete set ;  manuals, externe PSU and extension cables .

The PSU was a supprise, I had not expected a 40W PSU just to feed 4 probes. A lot of HP analysers can feed this probe so the PSU is not always needed.

The box was missing the foam so I replaced that.

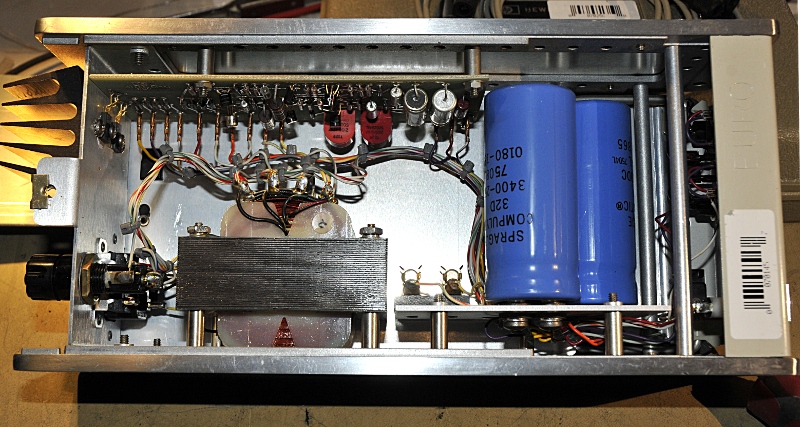

HP-1122 PSU

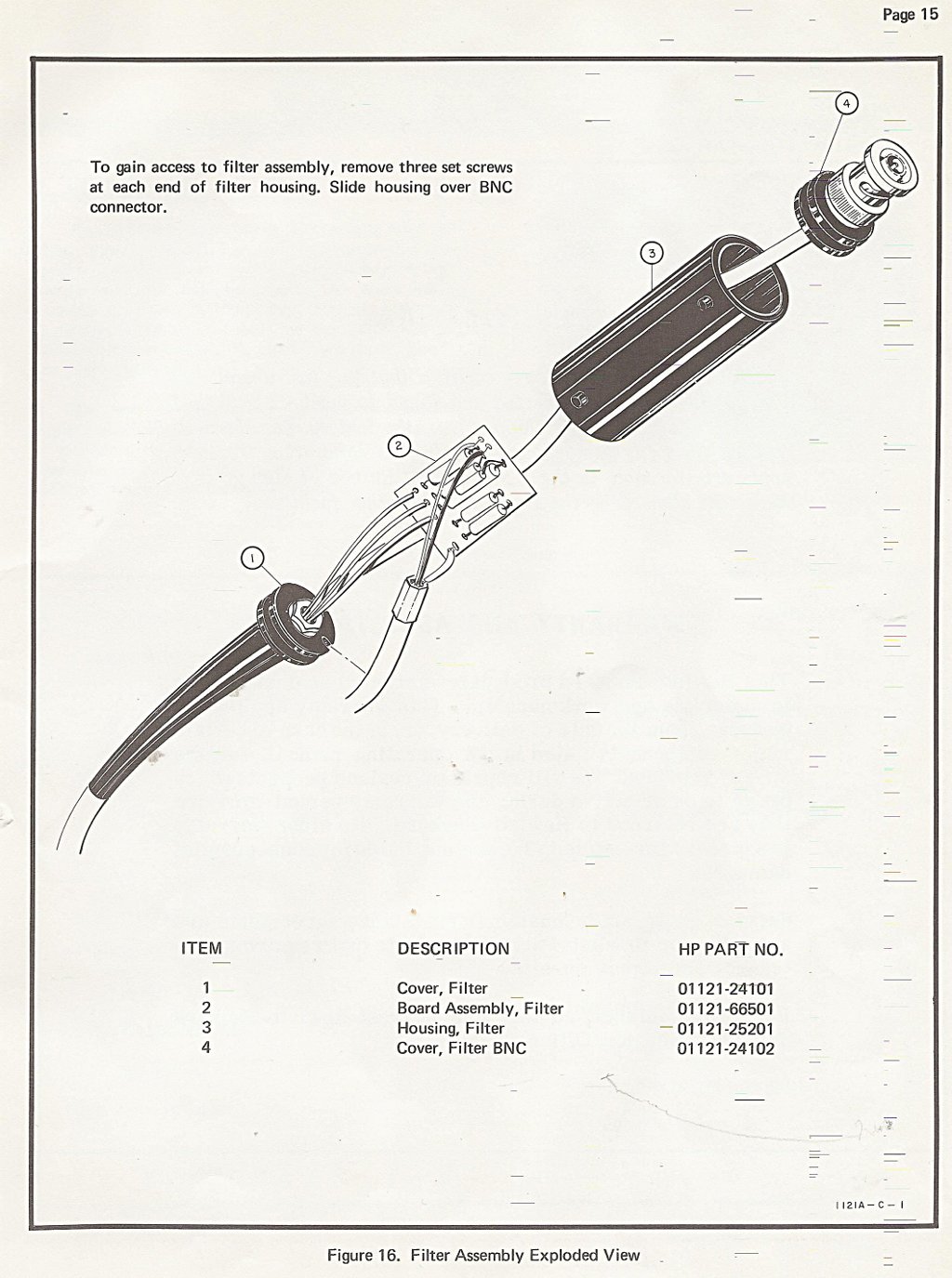

Some pages from the operation note.

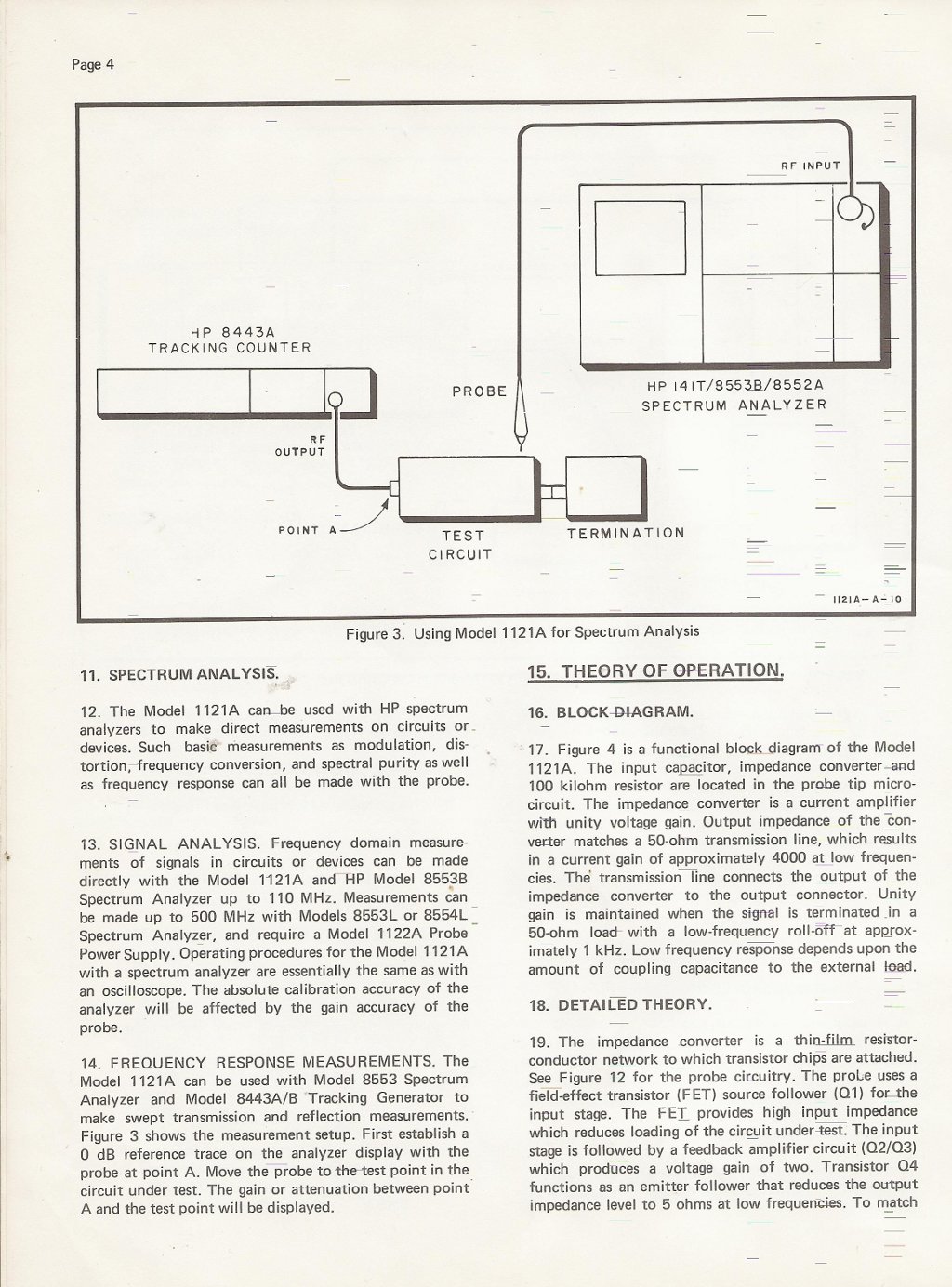

Uitleg werking

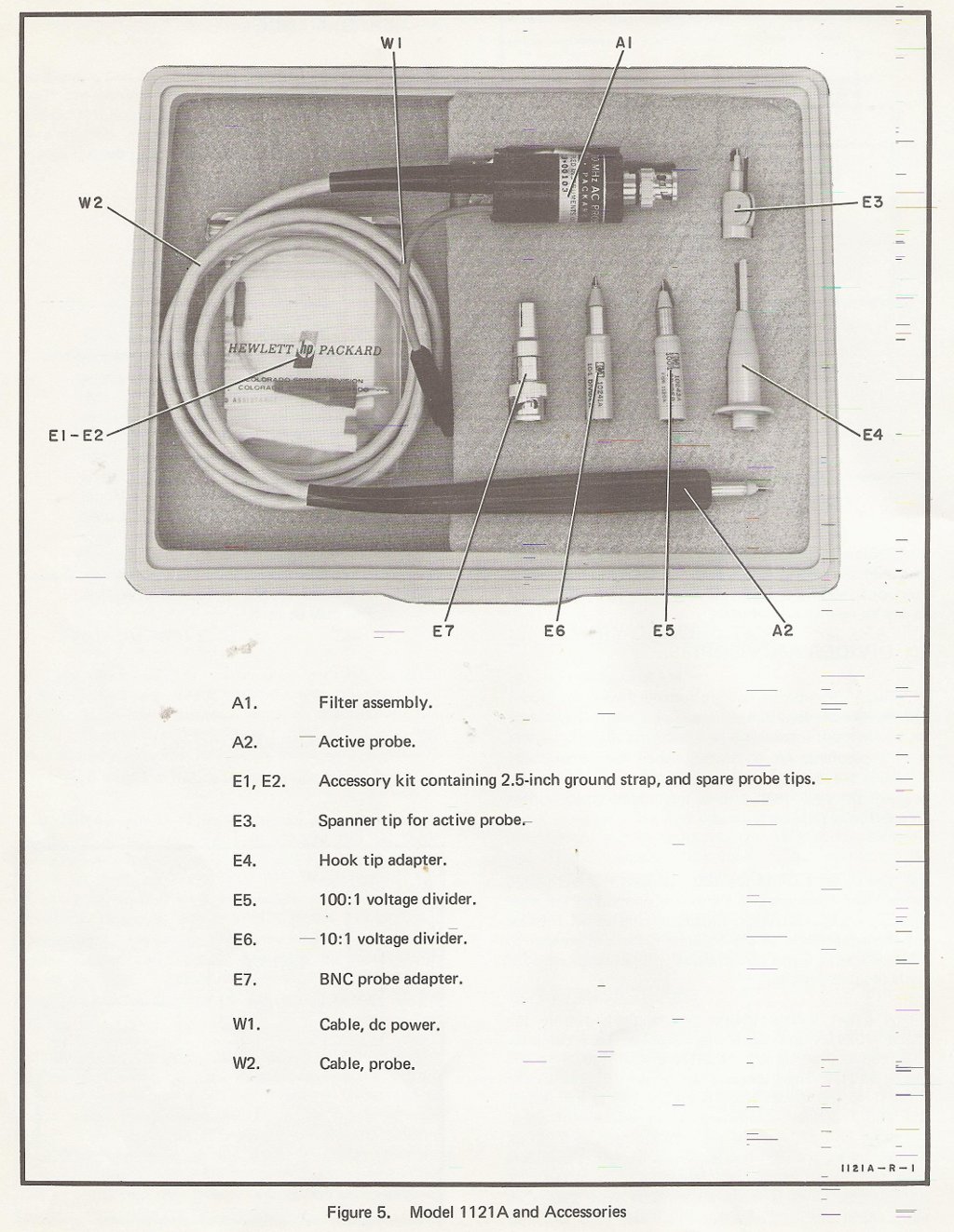

De inhoud van de set

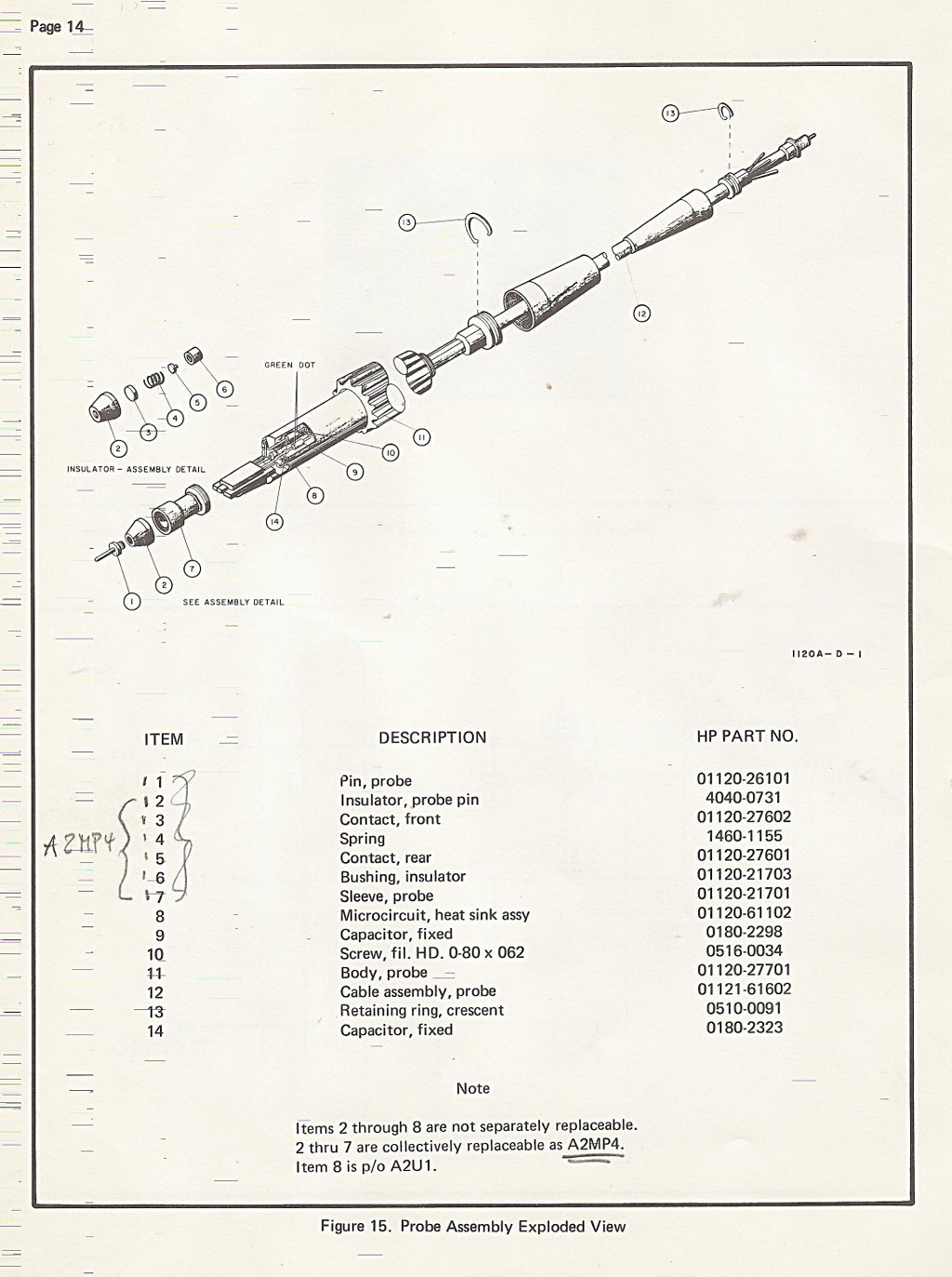

Probe zelf
