Metrix transistormetre fully dressed
One of the most beautifull transistor testers I have ever seen. This must have been an expensive instrument. It was a gift from Circuits online member Blackdog. It is even more special because it is very complete.

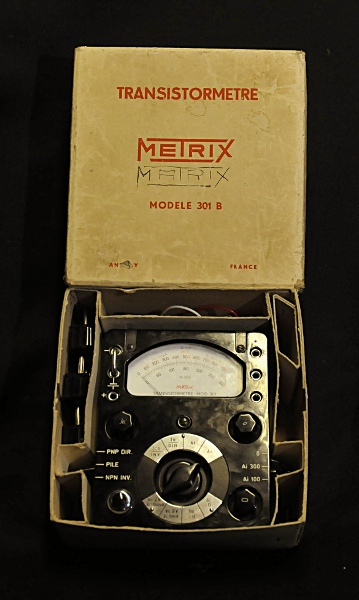

In original box
In the box the 3 test jigs, 3 spare banana jacks and three wires with crocks and to complete it all the paperwork. Including a typed paper with a Dutch translation of the French manual. Not a very good translation but better as the french. This is not the most easy meter to use.

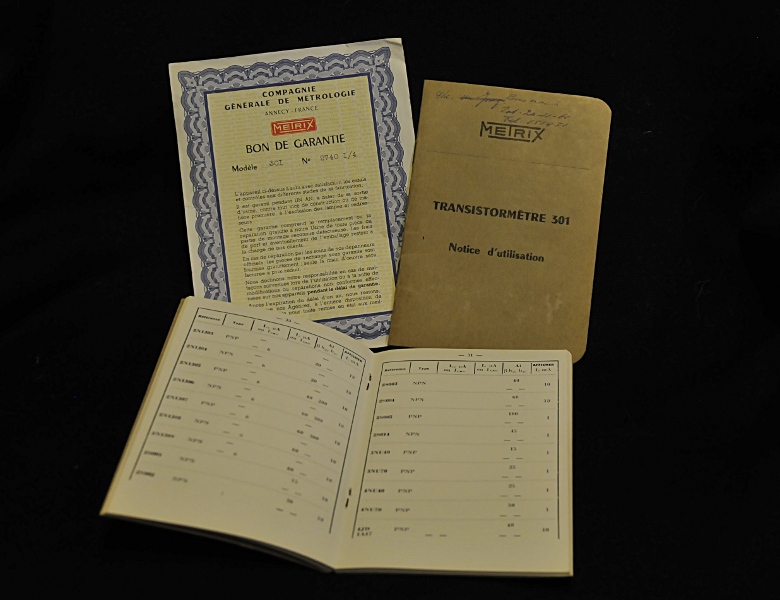

Papers
The open booklet is a list of transistors and there parameters. I can not find a date but I guess end 50’s.

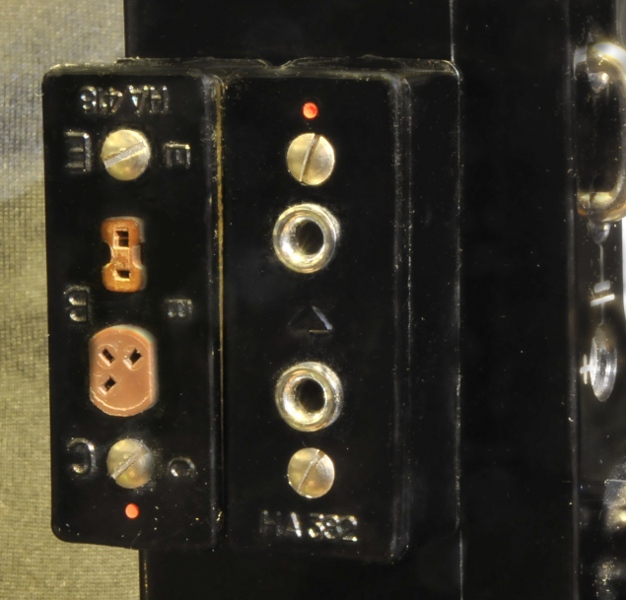

close up of 2 jigs
The not used test jigs can be inserted in busses on the side. The meter needs a 4.5V battery but there are also busses on the front to hook up a second 4.5V battery to get -4.5, 0 and +4.5V.
